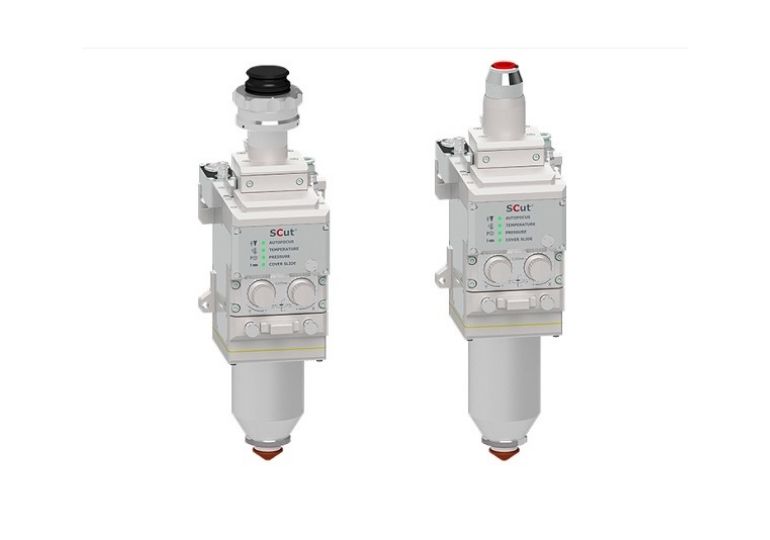

Laser Cutting Optics - SCut PRO | Scansonic

Advantages

A. Suitable for modern, powerful laser cutting systems with a laser power of up to 12 kW.
B. Cooling circuit to protect the optical components.
C. Robust autofocus system with high dynamics for reliable insertion and precise focus positioning.
D. Resistant sealing system, including seal monitoring to protect the optical components.
E. Temperature-stable distance control between laser cutting head and workpiece for constantly stable cutting results, even with high laser power and long processing times.
F. The user-friendly service concept enables system integrators to change the optical components quickly and easily.
G. Precise and true-to-axis horizontal adjustment of the laser beam in X and Y-directions on the front of the cutting head for effortless operation.
H. Comprehensive sensor-based status monitoring for the reliable operation of the system

Properties
1. The design of the optics allows certified system integrators to change optical components quickly and easily.
2. Collimation focal length of 100 mm and focal lengths of 125mm, 150mm, 175 mm, or 200 mm.
3. Status indicator for monitoring the laser cutting head.
4. Front-operated horizontal adjustment in the coordinate system of the cutting system

Supported Laser
- Fiber lasers
- Disc lasers
