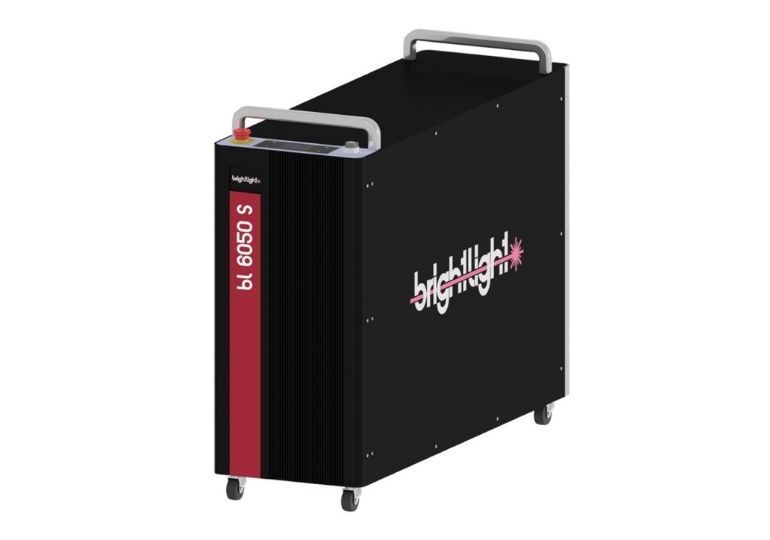

Brightlight Laser bl 6050 S By Scansonic
Function Description
Scansonic Brightlight Laser is a high-performance fiber laser source renowned for its reliability and efficiency. Designed for industrial applications, it delivers exceptional beam quality and power, making it ideal for wide range of industrial applications including welding, cutting, and battery welding. With its high efficiency and excellent beam quality, the Brightlight laser is a versatile solution for enhancing productivity and product quality.
Laser Specs
Optical Output Specs
Delivery Cable connector: QBH
Delivery Cable type: metal shielded cable
Delivery cable diameter: 13 mm
Beam Quality M²: < 6.0
Delivery cable diameter output for different models (in micrometers): 50
bl6050 / bl6100/ bl6150: 50 / 100 / 150
Delivery Cable length: 20 m
Electrical Specifications
Voltage: 342 - 418 V
Maximum input current: 32 A
Frequency: 47 - 60 Hz
Maximum input power: 14 kW
Mechanical Specs
Dimensions (l X h X b) - all dim. In mm: 900 X 720 X 300
Weight: 100 kg
Operating Conditions requirements
Operating temperature range (Celsius): 0° C - 40 0° C
Storage temperature range (Celsius): -10° C - 50 0°
Operation humidity: 0 % to 95 %
Storage humidity: 0 % to 95 %
Coolant specs
Water Temperature (Celsius): 22° C to 28° C
Water pressure: 3 to 5 bar
Flow rate: 5 lit/min
Storage humidity range: 0 % to 95 %
Cooling capacity: 9000 W
