BLC Powder Nozzle - CNS 37 for Fast Laser Cladding
Laser
Automation Pvt. Ltd
Laser Machine Manufacturer -
Email
BLC Nozzle CNS 37

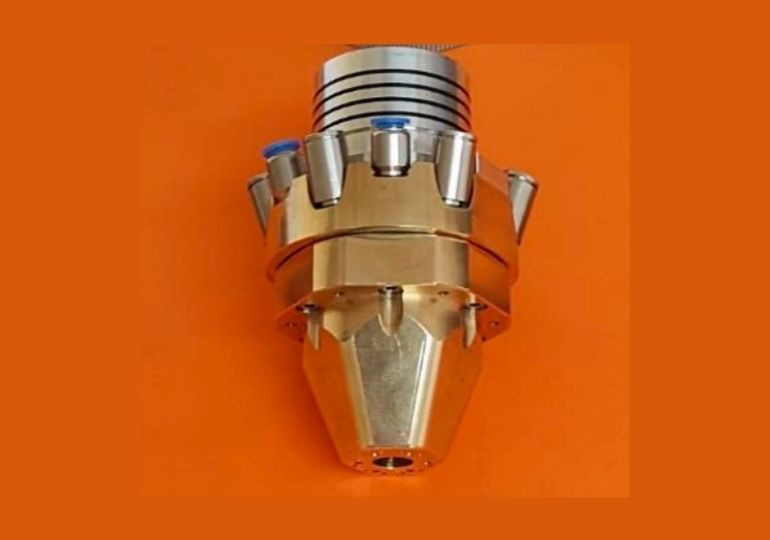

Our BLC powder nozzles work with 3 or 6 individual jets which guide the powder into the laser melt pool with very good focus.
The powder jets are oriented so that they perfectly fill the melt pool of the CNS nozzle measuring 3-7 mm and the CNXS nozzle measuring 2-5 mm.
Depending on their design, the nozzles have an operating distance of 12 mm to 25 mm and are consequently not susceptible to back reflections and back-spatter from hot particles. The individual jets make it possible to weld independently of 3D direction, as the flow of powder is unaffected by nozzle inclination.
The nozzle is designed to make it possible for the user to replace wear parts quickly and economically. The optimum powder focus guarantees a very good efficiency rate - up to 95 % if parameters are well-matched.
In combination with BLC material feeders, the nozzle can be integrated in a variety of system concepts such as robotic systems, CNC machines, XYZ axis machines and 3D printers (additive manufacturing).
It is also possible to use the nozzle with an angled optic for inner coatings. The nozzle can be matched to a variety of laser types (diode, fiber or disk lasers) and spot sizes.
Technical data for BLC Nozzle
- Nozzle type: BLC powder nozzle CNS 37,
- 3 and 6 individual jets:for Laser cladding and high-speed cladding.
- Powder particle size: 20-160 μm (depending on powder feeder)
- Efficiency rate: Up to 95 % (depending on parameters and powder)
- Powder injectors: Can be switched 1mm, 1,5mm, 1,8mm
- Internal diameter: 1.5 mm
- Quantity fed: Approx. 5 g to 200 g (depending on injector and powder)
- Melt pool diameter: 3 mm to 7 mm
- Powder focus: 3 mm to 7 mm (depending on injector)
- Focal length: Min. 150 mm (with XY adjustment)
- Optic design: Check in advance so that the laser beam does not contact the wall.
- Distance between nozzle and component: 25 mm
- Laser type: Diode, fiber, disk laser
- Max. laser power: Up to 8 kW depending on powder and process (upgrade to 16kW)
- Inclination of nozzle: 90°, 3D-compatible
- Shielding gas blanket from outside (GO connection): Possible as an option
- Diameter and length (excluding XY adjustment): Approx. D: 60 mm, L: 80 mm
- Diameter and length of the XY adjustment: Approx. D: 78 mm, L: 35 mm to 60 mm (depending on optic adapter)
- Total length including XY (min. focal length): Approx. 120 mm
- Water cooling (connections WI, WO): Min 3.5 bar - 6 bar, water hose 6/4 mm, use distilled water
- Water flow rate: Approx. 1-2 L/min
- Powder connections : (P1 to P6) Powder tube, antistatic 6/4 mm
- Shielding gas connection (connection GI): Gas hose 6/4 mm
- Weight: Approx. 1.5 kg
For High Speed Laser Cladding
The nozzle is designed to make it possible for the user to replace wear parts quickly and economically.
Applications
Protection from wear and corrosion.
Laser cladding and high-speed cladding.
Coating new parts
Repairing and reworking components and tools
Generating or restoring contours
Improving component properties
Restoring or creating structures
Additive manufacturing, 3D printing
Components
Hydraulic cylinders
Drilling tools
Screws for plastic machines, feed screws
Rollers for the paper or printing industry
Blades for the food industry or for agriculture
Potential Powders
Iron-based materials such as 316L
Nickel alloys such as Inconel 625, NiCrBSi
Cobalt alloys such as Stellite 21, Stellite 6
Carbide-reinforced materials
And many more ...
